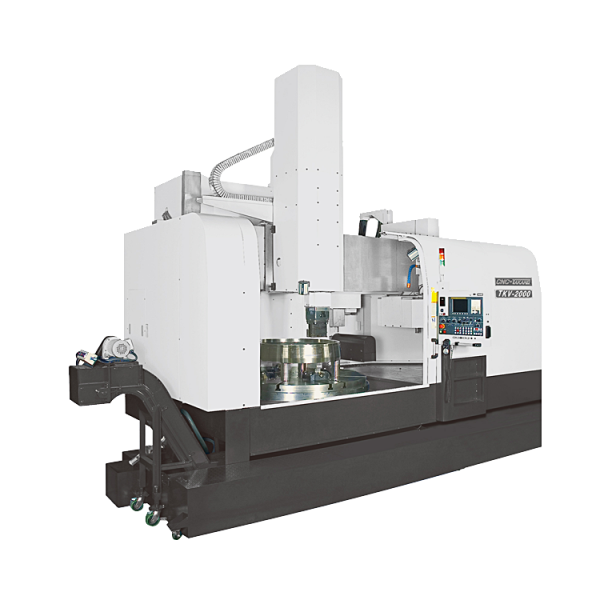

Máy tiện đứng CNC Đài Loan TKV-1100 / 1100M / 1600 / 1600M / 2000 / 2000M / 2500 / 2500M

Giá: Liên hệ

Máy tiện đứng CNC Đài Loan – Vertical lathe CNC machining

  • Đường kính vật tiện lớn nhất(mm): 1100-2500mm
  • Đường kính tiện lớn nhất(mm): 1100-2500mm
  • Tốc độ bàn quay lên tới 2, 250 vòng/phút
  • Số vị trí dao: 12 (OPT 4 / 6 / 8)/ 12/12+12
  • Tốc độ cắt liên tục: 0. 001-500 mm/phút
Danh mục:

    Máy tiện CNC Đài Loan TAKANG  mobel TKV-1100 / 1100M / 1600 / 1600M / 2000 / 2000M / 2500 / 2500M

    Thông số kỹ thuật máy tiện Takang

    Model TKV-1100 TKV-1100M TKV-1600 TKV-1600M
    Capacity Max. swing diameter 1200 mm (47. 2″) 1600 mm (62. 9″)
    Max. turning diameter 1200 mm (47. 2″) 1600 mm (62. 9″)
    Distance from ram to table 925 mm (36. 4″) /
    OPT. 500-1100 mm (19. 6″-43. 3″)    		 650-1450 mm
    (25. 5″-57″)
    Max. turning height 650 mm (25. 5″) /
    OPT. 800 mm (31. 4″)    		 1200 mm
    (47. 2″)    		 1170 mm
    (46. 1″)
    Max. workpiece weight 3500 kgs 5000 kgs
    Spindle Table diameter
    (Manual chuck)    		 1000 mm (39. 3″) 1250 mm (49. 2″)
    Range of table speed 3 – 400 rpm 3 – 300 rpm
    Change gear speed 2 Steps 2 Steps
    Spindle nose – – –
    Driving tool spindle speed – 50 – 2250 rpm – 50 – 2250 rpm
    ATC Number of tool station 12 12 / OPT. 16 16
    Tool size 25 mm (0. 9”), 32 mm (1. 2”)
    Cross-section of ram 200 x 200 mm
    (7. 8″ x 7. 8″)    		 OPT. 250 x 250 mm (9. 8″ x 9. 8″)
    Feed Rapid rate (X Axis) 10 M/min 10 M/min
    Rapid rate (Z Axis) 10 M/min 10 M/min
    Horizontal travel (X Axis) -100 + 800 mm
    (-3. 9″+31. 4″)    		 -200 + 950 mm
    (-7. 8″+37. 4″)
    Vertical travel (Z Axis) 700 mm (27. 6″) 900 mm (35. 4″)
    Cutting feed fate 0. 001 – 500 mm/rev 0. 001 – 500 mm/rev
    Feed override 0 – 150 % 0 – 150 %
    Cross – rail travel Fixed / OPT. 200 x 3 steps 800 (200 x 4 steps)
    CNC Controller System Fanuc 0iTF Fanuc 0iTF
    Motor Spindle motor
    (Cont. / 30 min)    		 30 / 37 kw 37 / 45 kw
    Feed motor (X / Z aixs) 4 / 4 kw 7 / 7 kw
    Driving tool motor – AC 11 / 15 kw – AC 11 / 15 kw
    Power requirement 75 KVA 90 KVA 75 KVA 90 KVA
    Machine Size Floor space (L x W) 4060 x 4020 mm 6500 x 4900 mm
    Max. height 4000 mm 4550 mm 5200 mm 5650 mm
    Net. weight 17800 kgs 18600 kgs 24500 kgs 25300 kgs
    Model TKV-2000 TKV-2000M TKV-2500 TKV-2500M
    Capacity Max. swing diameter 2000 mm (78. 7″) 2500 mm (98. 4″)
    Max. turning diameter 2000 mm (78. 7″) 2500 mm (98. 4″)
    Distance from ram to table 650-1450 mm (25. 5″-57″) 825-1825 mm
    (32. 5″-71. 9″)    		 860-1860 mm
    (33. 9″-73. 2″)
    Max. turning height 1250 mm (49. 2″) 1600 mm (62. 9″)
    Max. workpiece weight 8000 kgs 12000 kgs
    Spindle Table diameter
    (Manual chuck)    		 1600 mm (62. 9″) 2000 mm (78. 7″)
    Range of table speed 3 – 250 rpm 5 – 200 rpm
    Change gear speed 2 Steps 2 Steps
    Spindle nose – – – –
    Driving tool spindle speed – 50 – 2250 rpm – 50 – 2250 rpm
    ATC Number of tool station 12 16 12 16
    Tool size 25 mm (0. 9″), 32 mm (1. 2″), 40 mm (1. 5″)
    Cross-section of ram 220 x 220 mm 250 x 250 mm 250 x 250 mm (9. 8″ x 9. 8 “)
    Feed Rapid rate (X Axis) 10 M/min 10 M/min
    Rapid rate (Z Axis) 10 M/min 10 M/min
    Horizontal travel (X Axis) -200 + 1150 mm -300 + 1450 mm
    Vertical travel (Z Axis) 900 mm (35. 4″) 1200 mm (47. 2″)
    Cutting feed fate 0. 001 – 500 mm/rev 0. 001 – 500 mm/rev
    Feed override 0 – 150 % 0 – 150 %
    Cross – rail travel 800 (200 x 4 steps) 1000 (250 x 4 steps)
    CNC Controller System Fanuc 0iTF Fanuc 0iTF
    Motor Spindle motor
    (Cont. / 30min)    		 37 / 45 kw 60 / 75 kw
    Feed motor (X / Z aixs) 7 / 7 kw 5. 5 / 5. 5kw
    Driving tool motor – AC 11 / 15 kw – AC 11 / 15 kw
    Power requirement 75 KVA 90 KVA 90 KVA 105 KVA
    Machine Size Floor Space (L x W) 7100 x 5200 mm
    (258. 5″x159. 4″)    		 7400 x 5200 mm 7600 x 5500 mm
    Max. height (H) 5250 mm
    (204. 7″)    		 5650 mm
    (220. 5″)    		 6650 mm
    (248. 0″)    		 7000 mm
    (271. 7″)
    Net. weight 27500 kgs 28300 kgs 47000 kgs 49000 kgs
